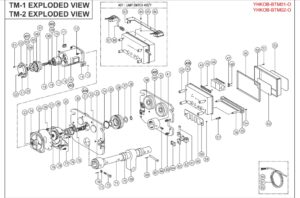

ลำดับในภาพระเบิด	Part no.	ชื่อสินค้า	รายละเอียดสินค้า
1	VBM0600200PS	HEX WRENCH BOLT S/W	M6*20
2	VBM0600350PW	HEX WRENCH BOLT S/W	M6*35
3	DMA11C0B1300	BRAKE STATOR
4	DMA11C0P0700	PACKING BEARING SUPPORT
5	USA11C0C0300	CORD PRESS METAL
6	VBM0400080NM	MACHINE SCREW S/W	M4*8
7	VBM0800330PR	SPRING PIN	Ø8*33
8	DMA11C0B0200	BEARING SUPPORT
9	DMA11C0P0700	PACKING BEARING SUPPORT
10	DQBB6204DD00	BALL BEARING	6204DD
A01	DMA11C0B1000	BRAKE DISC ASS’Y
13	DMA11C0M0700	MOVING CORE
14	DMA11C0S0700	STOPPER RING SNAP
A02	DOA11C0B0400	BRAKE COIL ASS’Y
17	VBM0600200PS	HEX WRENCH BOLT S/W	M6*20
18	DMA11C0B1200	BRAKE SPRING
A03(19)		PACKING FOR SPRING COVER
A03(20)		SPRING COVER
21	VBM1000000PH	HEX NUT	M10
24	DMA11C0P1200	PACKING MOTOR CASE
25	DMA11C0P1500	PLATE FOR LOCATING
A04	DPA11C0RA000	ROTOR ASS’Y
28	DMA11C0B0100	BEARING HOUSING
A05	DMA1C0M0600	MOTOR SIDE PLATE ASS’Y
32	VBM1000200PS	HEX WRENCH BOLT S/W	M10*20
33	DMA11C0H0100	CHAIN BAG SUPPORT METAL
34	VBM0500080PS	MACHINE SCREW S/W	M5*8
35	DMA11C0H0200	HOLDING BOARD FOR SPRING
37	USA11C0R0100	ROLLER PIN
38	VBM0600200PS	HEX WRENCH BOLT S/W	M6*20
39	DMA11C0R0600	ROLLER BOARD
40	DMA11C0I0100	INTERMEDIATE STICK SPRING
41	DMA11C0R0500	ROLLER
42	DMA11C0C0700	CHAIN GUIDE
43	USA11C0A0100	ANTIROTATION PIN
44	DMA11C0O0200	OIL SEAL B	21328
A13	DRA11C0T0100	TOP HOOK ASS’Y
51	USA11C0T0100	TOP HOOK PIN
54	USA11C0S0400	SUNK BOLT	M8*10
55	DMA11C0F0100	FLANGE B
56	DMA11C0P1000	PACKING FLANGE B
57	DMA11C0H0100	HANGER HOLDING METAL
58	USA11C0S0300	STAY BOLT B
59	DMA11C0L0200	LEAD WIRE
A06	DMA11C0G0300	GEAR SIDE PLATE ASS’Y
61	DMA11C0P1100	PACKING GEAR CASE
62	DMA11C040100	4TH GEAR
63	DQOUS0004000	SNAP RING	S40
64	DMA11C0D0100	DISC HUB
65	DMA11C0B1500	BUSH FOR RATCHET DISC
66	DMA11C020100	2ND GEAR
67	DQBB6301ZZ00	BALL BEARING	6301ZZ
68	VBM1000000PS	SPRING WASHER	M10
A14	DMA11C0P0300	PAWL COVER ASS’Y
A14(70)	DMA11C0P1300	PACKING PAWL COVER
A14(71)	VBM1000120N0	AIR HOLE BOLT
A14(72)	VBM0600200PS	HEX WRENCH BOLT S/W	M6*20
77	VBM1000120PR	SPRING PIN	Φ10*12
78	VBM1000200PH	HEX BOLT S/W	M10*20
79	DMA11C0A0100	ADIABATIC PACKING
80	VOZEGLATUB20	GLASS TUBE
81	DMA11C0E0100	ELECTRIC COMPONENT BOARD
82	DMA11C0P0900	PACKING COMPONENT CASE
83	VBM0600200PS	HEX WRENCH BOLT S/W	M6*20
84	VSA11C0H0100	HEX STAY PIN
85	DMA11C0E0400	ELECTRIC EQUIPMENT BOARD A
86	DMA11C0E0200	ELECTRIC COMPONENT CASE
87	VBM0600100NS	HEX BOLT W/CROSS & S/W	M6*10
88	DRA11C0N0100	NAME PLATE
A07	DRA11C0L0400	LOAD LIMITER ASS’Y
A07(89)		MACHINE SCREW S/W P/W	M4*16
91	VBM08000000NE	EYE BOLT	M8
A08	DMA11C0L0600	LIMIT SWITCH ASS’Y
A08(96)	VBM0600100NS	HEX BOLT W/CROSS & S/W	M6*10
A08(97)	DMA11C0J0100	JOINT PIPE
98	DMA11C0C1400	CORD HOLDER ASS’Y
101	VBM1000120NH	HEX BOLT	M10*12
102	DMA11C0G0100	GEAR CASE
103	DQBB6203ZZ00	BALL BEARING	6203ZZ
104	DMA11C0S0600	STOPPER RING
105	DMA11C0S0400	SPLIT RING
A09	DMA11C0R0200	RATCHET GEAR ASS’Y
108	DMA11C030100	3RD GEAR
A10	DMA11C0L0400	LIMIT CAM ASS’Y
111	VBM0800180PR	SPRING PIN	Φ8*18
112	DQINR0006800	SNAP RING	R68
113	DQBB6008ZZ00	BALL BEARING	6008ZZ
114	DQBB6204ZZ00	BALL BEARING	6204ZZ
115	DMA11C0O0100	OIL SEAL A	45609
116	DMA11C0L0700	LOAD SHEAVE
118	DRA11C0S0200	STOPPER SPRING
119	DMA11C0C0900	CHAIN STOPPER
120		HEX WRENCH BOLT	M6*20
121	VBM0500250PW	HEX WRENCH BOLT S/W	M5*25
122	DMA11C0S0800	STRIPPER
123	DMA11C0S0300	SHEAVE COVER PACKING
124	DMA11C0S0200	SHEAVE COVER
126	DQBB6008ZZ00	BALL BEARING	6008ZZ
127	USA11C0S0200	STAY BOLT A
128	VBM0300180W0	COTTER PIN
129	USA11C0C0100	CHAIN BAG SUPPORT PIN
130	VBM0800150NP	PLAIN WASHER	M8
131	VBM0800000PH	HEX NUT	M8
132	DQBB6206ZZ00	BALL BEARING	6206ZZ
A11	DMA11C010200	1ST GEAR ASS’Y
136	DMA11C0M0400	MOTOR NAME PLATE
A12	DPA11C046100	MOTOR CASE & STATOR
A16	DOA11C021N10	ELECTRIC EQUIPMENT ASS’Y
A16(85)	DMA11C0E0400	ELECTRIC EQUIPMENT BOARD A
A16(144)	DGHMUF101000	MAGNETIC CONTACTOR SWITCH	DMC-12B 1a1b
A16(146)	VBM0400080NA	MACHINE SCREW S/W P/W	M4*8
A16(147)	DF0402316000	TRANSFORMER	30VA
A16(148)		FUSE
A16(150)	VBM0400100NA	MACHINE SCREW S/W P/W	M4*10
A16(151)	DMA11C0E0500	ELECTRIC EQUIPMENT BOARD B
A16(152)	DOZEBLK20100	TERMINAL BLOCK	6P
A17	DRB11C0B0100	BOTTOM HOOK ASS’Y
A17(154)		HEX NUT	M8
A17(156)	DMA11C0B0700	BOTTOM HOOK SPLIT RING
A17(158)		HEX BOLT	M8*35
A17(159)	DQTB05110400	THRUST BEARING	TB-051040
A17(46)	VBM0600300NW	HEX WRENCH BOLT	M6*30
A17(47)	USB11C0S0100	SAFETY LEVER SPRING
A17(48)	DMB11C0S0100	SAFETY LEVER
A17(49)	VBM0600000NU	U NUT	M6
A17(160)	DMB11C0B0100	BOTTOM HOOK
