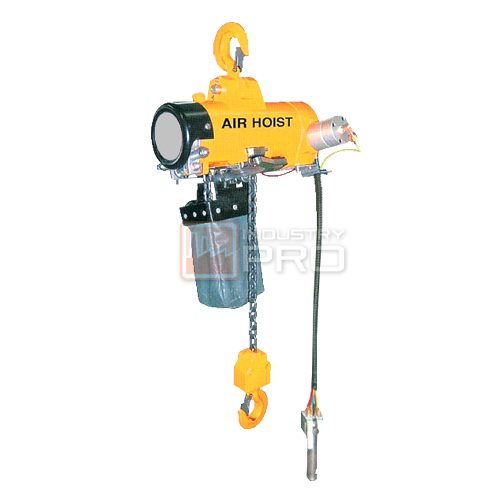

รอกโซ่ไฟฟ้า Air Hoists NICHI KA1SN,KA2SN Series

รอกโซ่ไฟฟ้า Air Hoists NICHI KA1SN,KA2SN Series

FEATURES

  • The air hoists ranging in capacity from 250kg to 2000kg.
  • Suitable for application in chemical factories and other hazardous areas.
  • Lightweight and compact design. Very easy to handle.

Specifications for Air Hoists KA1SN , KA2SN

Item number Rated load (kg) Lifting speed m/min(m/sec) Standard lift (m) Supply pressure MPa(kgf/cm²) Air consumption (m³/min)
No-load Rated load
Lifting Lowering Lifting Lowering
KA1SN-025PB 250 17 15 10 19 3 0.6 (6) 1.4
-0.283 -0.25 -0.167 -0.137
KA1SN-050PB 500 17 15 7.5 24 1.4
-0.283 -0.251 -0.125 -0.04
KA1SN-100PB 1000 8.5 6.5 3.5 12 1.4
-0.142 -0.108 -0.058 -0.02
KA2SN-100PB 1000 9 7 4.5 11 1.8
-0.15 -0.117 -0.075 -0.183
KA2SN-200PB 2000 4.5 3.5 2.3 5.5 1.8
-0.075 -0.058 -0.038 -0.092
Item number Rated load (kg) Loading chain Net weight (kg) Connection diameter
Wire size (mm) Rope number
KA1SN-025PB 250 6.3 1 23 Rc1/2″
KA1SN-050PB 500 23
KA1SN-100PB 1000 2 31
KA2SN-100PB 1000 7.1 1 40
KA2SN-200PB 2000 2 45

Hose diameter: φup to 12-10m

Item Number Rated load (kg) Outside dimension(mm)
A B ※C D E ※F G ※P ※Q ※S(m)
KA1SN-025PB 250 160 170 22.5 180 143 22.5 420 540 200 2.4
KA1SN-050PB 500
KA1SN-100PB 1000 455 180
KA2SN-100PB 1000 230 210 25 188 135 465 570 230
KA2SN-200PB 2000 25 555



  • Specifications are subject to change for improvements without notice.
  • ※Reference value
