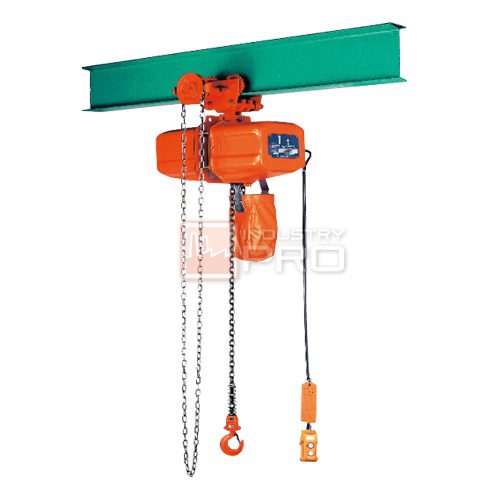

รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น ECTG4

  • This two-speed electric chain hoist with a geared trolley can be moved upward and downward via a two-button switch.
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 5 m. (That of a four-button model used in combination with a crane is 1 m.) Please consult us for different cable lengths or for other power feeding systems.

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECTG4

  • This two-speed electric chain hoist with a geared trolley can be moved upward and downward via a two-button switch.
  • The rated load of 1 tw and 2 t is applicable to a two-chain configuration.
  • The standard lift is 3 m and 6 m. Longer lifts are available upon request.
  • The length of a standard power cable is 5 m. (That of a four-button model used in combination with a crane is 1 m.) Please consult us for different cable lengths or for other power feeding systems.

Specifications for Geared Trolley Type Two-Speed Electric Chain Hoist ECTG4

Item no. Rated load Standard lift (m) Traversing rail width (mm) Min. curve radius (m) Power cable length (m) Push-button switch cord length S (m)
ECTG40025 250kg 3 75 1 5 2.6
6 100 5.6
ECTG40050 500kg 3 125 2.6
6   5.6
ECTJG40100 1tw 3   2.6
6   5.6
ECTG40100 1t 3   2.6
6   5.6
ECTJG40200 2t 3 100 1.2 2.6
125
6 150 5.6
Item no. Min. headroom G (mm) Hook mass (kg) Hand chain length ℓ(m) Traversing distance achieved by pulling hand chain 1 m (mm) Net weight* (kg)
ECTG40025 475 0.7 3 229 49
6 55
ECTG40050 510 3 53
6 58
ECTJG40100 640 2.4 3 58
6 65
ECTG40100 550 0.9 3 65
6 73
ECTJG40200 765 5 3 138 85
6 95
Item no. External dimensions (mm)
A B D E F H I K
ECTG40025 245 245 137 149 20 b/2+190 105 206
ECTG40050
ECTJG40100 167 118 25
ECTG40100 255 255 150 168
ECTJG40200 191 127 30 b/2+150 128 262
Item no. External dimensions (mm)
L M P* Q* T U
ECTG40025 24-t2 b-42 650 195 72+t2 80+t2
ECTG40050
ECTJG40100 695 225
815
ECTG40100 685 200
ECTJG40200 28-t2 b-63 775 240 115+t2 102+t2
895

Notes:

  • Figures marked with an asterisk (*) are based on the standard lift.
  • Specifications are subject to change for improvements without notice.
  • Please refer to the specifications for the ECT4 for items related to hoisting.
