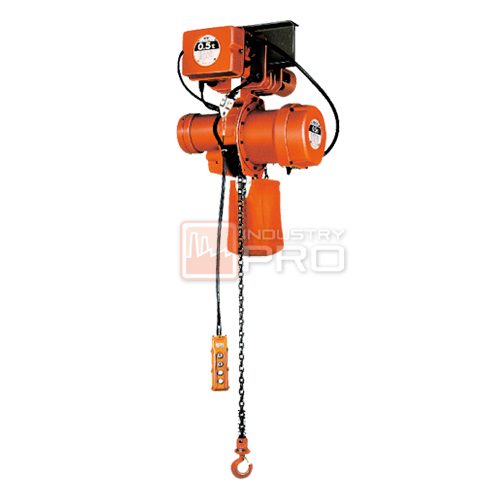

รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น MTE-5

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI MTE-5

Motorizes Trolley Type Two-Speed Electric Chain Hoist

Features

  • Developed to handle precision work such as positioning, the MTE-5 is equipped with a 1-to-4 two-speed function to achieve optimal work efficiency.
  • The built-in electric trolley contributes to improved work efficiency.


Main Applications

  • Forming and molding
  • Casting
  • Transportation of precision equipment
  • Maintenance of large, high-precision machines
  • Assembly of precision machines

Specifications for Motorized Trolley Type Two-Speed Electric Chain Hoist MTE-5

Item no. Rated load (t) Standard lift (m) Traversing Traversing rail width b (mm)
Speed Motor output (kW)  Motor insulation class Rated time (min)
50Hz 60Hz
(m/sec) (m/min) (m/sec) (m/min)
MTE5005 0.5 4 0.333  20  0.400  24  0.2 E 30 75,100,125
MTE5010 1 0.167* 10* 0.200* 12* 0.2
MTE5020 2         0.4 100,125,150
MTE5025 2.5         0.4
MTE5050 5         0.75  125,150,175
        *0.4
Item no. Rated load (t) Min. curve radius (m) Power cable length (m) Push-button switch cord length (m) Min. headroom G (mm) Net weight** (kg) External dimensions (mm)
A B D E F
MTE5005 0.5 1 10 4 535 86 305 285 152 106 20
MTE5010 1 545 88 25
MTE5020 2 725 156 365 335 195 127 30
MTE5025 2.5 1.5 805 175 36
MTE5050 5 975 222 247 93 43
Item no. Rated load (t) External dimensions (mm)
H I J K L M P** Q** U
MTE5005 0.5 b/2+280 b/2+230 127 240 32-t2 b-49 780 220 99+t2
MTE5010 1
MTE5020 2 b/2+325 b/2+235 159 300 33-t2 b-70 860 235 121+t2
MTE5025 2.5 b/2+330 b/2+240 180 340 37-t2 b-76 920 134+t2
MTE5050 5 b/2+245 204 390 38-t2 b-80 1010 290 158+t2

Notes:

  • Specifications are subject to change for improvements without notice.
  • Figures under “Traversing” marked with an asterisk (*) indicate half speeds.
  • Asterisks (**) indicates figures that are subject to change depending on the lift. Please contact us for further details.
  • Please refer to the specifications for the MHT-5 for items related to hoisting.
