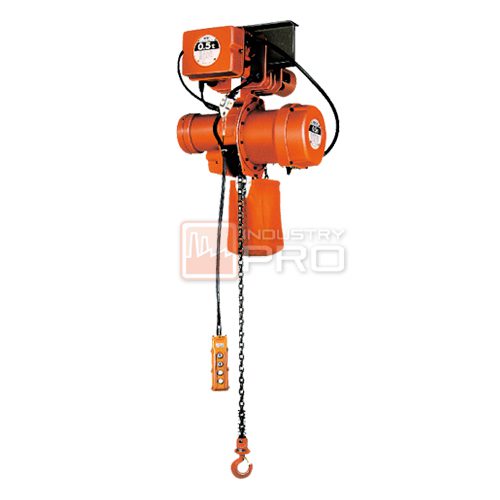

รอกโซ่ไฟฟ้า Electric Chain Hoist NICHI รุ่น MTET-5

รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI MTET-5

Two-Speed Motorized Trolley Type Two-Speed Electric Chain Hoist

Features

  • Developed to handle precision work such as positioning, the MTET-5 is equipped with a 1-to-4 two-speed function to achieve optimal work efficiency.
  • The built-in electric trolley contributes to improved work


Main Applications

  • Forming and molding
  • Casting
  • Transportation of precision equipment
  • Maintenance of large, high-precision machines
  • Assembly of precision machines

Specifications for Two-Speed Motorized Trolley Type Two-Speed Electric Chain Hoist MTET-5

Item no. Rated load (t) Standard lift (m) Hoisting speed
High Low
50Hz 60Hz 50Hz 60Hz
m/sec m/min m/sec m/min m/sec m/min m/sec m/min
MTET5005 0.5 4 0.133 8 0.157 9.4 0.032 1.9 0.037 2.2
MTET5010 1 0.072 4.3 0.083 5 0.017 1 0.02 1.2
MTET5020 2 0.08 4.8 0.093 5.6 0.02 1.2 0.023 1.4
MTET5025 2.5 0.063 3.8 0.073 4.4 0.017 1 0.018 1.1
MTET5050 5 0.032 1.9 0.037 2.2 0.008 0.5 0.01 0.6
Item no. Rated load (t) Motor output (kW) Motor insulation class Rated time (min) Load chain
High Low Diameter No. of falls
50Hz 60Hz 50Hz 60Hz High Low
MTET5005 0.5 0.83 1 0.21 0.25 B 20 20 7.1 1
MTET5010 1
MTET5020 2 1.83 2.2 0.46 0.55 11.2
MTET5025 2.5
MTET5050 5 2
Item no. Rated load (t) Traversing speed Motor output (kW) Motor insulation class
High Low
50Hz 60Hz 50Hz 60Hz High Low
m/sec m/min m/sec m/min m/sec m/min m/sec m/min
MTET5005 0.5 0.333 20 0.4 24 0.108 6.5 0.133 8 0.2 0.07 E
MTET5010 1
MTET5020 2 0.4 0.14
MTET5025 2.5
MTET5050 5 0.167 10 0.2 12 0.055 3.3 0.067 4
Item no. Rated load (t) Rated time (min) Traversing rail width b (mm) Min. curve radius (m) Power cable length (m) Push-button switch cord length S (m) Test load (t) Min. headroom G (mm) Hook mass (kg)
MTET5005 0.5 15 75,100,125 1 10 4 0.625 535 0.7
MTET5010 1 1.25 545 0.9
MTET5020 2 100,125,150 2.5 725 2.3
MTET5025 2.5 1.5 3.125 805 3.5
MTET5050 5 125,150,175 6.25 975 13.5
Item no. Rated load (t) External dimensions (mm)
A B D E F H I J K
MTET5005 0.5 305 285 152 106 20 b/2+330 b/2+240 127 240
MTET5010 1 25
MTET5020 2 365 335 195 127 30 b/2+360 b/2+240 159 300
MTET5025 2.5 36 b/2+365 b/2+245 180 340
MTET5050 5 247 93 43 b/2+445 b/2+310 204 390
Item no. Rated load (t) External dimensions (mm) Net weight* (kg)
L M N P* Q* U
MTET5005 0.5 32-t2 B-49 φ69 780 220 96+t2 96
MTET5010 1 97
MTET5020 2 33-t2 B-70 φ95 860 235 121+t2 168
MTET5025 2.5 37-t2 B-76 φ110 920 134+t2 190
MTET5050 5 38-t2 B-80 φ130 1010 290 158+t2 240

Notes:

  • Specifications are subject to change for improvements without notice.
  • An asterisk (*) indicates figures that are subject to change depending on the lift. Please contact us for further details.
