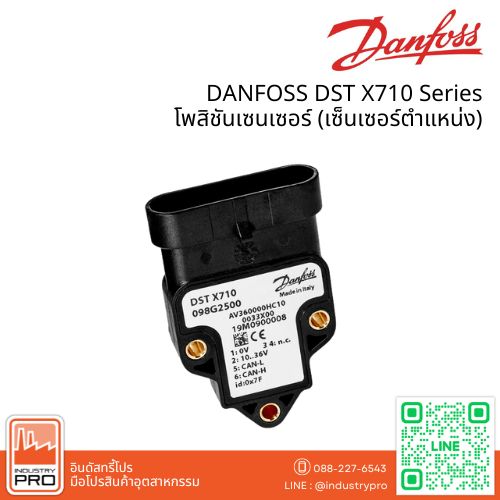

DANFOSS DST X710 Series โพสิชันเซนเซอร์ (เซนเซอร์ตำแหน่ง)
Features
- เทคโนโลยี MEMS เพื่ออายุการใช้งานเซ็นเซอร์ที่ยาวนานเกือบไร้ขีดจำกัด
- รองรับการวัด 2 แกน สูงสุด ±85° และการวัดแกนเดี่ยว 360° (±180°)
- เอาต์พุต: แบบ Analog หรือ CANopen
- ขั้วต่อไฟฟ้า: AMP Superseal 6p 282108-1 หรือสายเคเบิล
- ความแม่นยำ: < ± 0.5% FS • ความละเอียด: 0.01°
- ระดับการป้องกัน IP67 – IPX9K เมื่อใช้กับขั้วต่อแบบ Female Mating
Technical data
Table 1 : Performance
| Measuring range | ±10° ±15° ±20° ±30° ±45° ±60° ±85° (single axis Z / dual axis XY) 360° (±180°) single axis Z |
| Accuracy (Factory verification @25 °C) | < ± 0.5% FS |
| Temperature coefficient @ 0° | Typical < ±0.006°/°K |
| Long term repeatability | Single axis: Typical <±0.5° in the range ±180° |
| Dual axis: Typical <±0.5° in the range ≤ ± 60°, ± 2° otherwise | |
| Resolution | 0.01° CANopen output; 12 bit analog output |
Table 2 : Electrical specifications
| Electrical connections | AMP Superseal 6P 282108-1, cable or cable +M12 5Pin |
| Output signal | CANopen, Ratiometric 10-90% of Vs, 0.5 – 4.5 V DC, 0-10 V DC or 4-20 mA |
| Supply voltage | CANopen, 0.5 – 4.5 V DC, 4 – 20 mA: 10 – 36 V DC; 0–10 V DC : 11–36 V DC |
| Ratiometric: 10 – 90% of Vs: 5 V DC | |
| Current consumption | Analogue: < 20 mA (no load) CANopen: < 15 mA (no load) |
| MTTFd [Years] | CANopen: 496 Analogue: 554 |
Table 3 : Environmental conditions
| Operating temperature range | -40 – 85 °C | ||
| EMC | Emission | EN 55011 | |
| Immunity | EN 61236-3-2 | ||
| Transient on supply lines | ISO 7637-2 | ||
| Bulk current injection | ISO 11452-4 | ||
| Vibration stability | Sinusoidal | 20 g, 10 Hz – 2,000 kHz | IEC 60068-2-6 |
| Shock resistance | Impulsive on 3 axes | 50 g, 11 ms | IEC 60068-2-27 |
| IP rating | IP67 – IPX9K with female mating connector | ||
Table 4 : Mechanical characteristics
| Materials | Enclosure | PBT (Polybutylene terephthalate) |
| Net weight | 0.036 kg (without cable) | |
Dimensions
Ordering type
| Type | Output signal | Cofigurations | Code no. |
| DST X710 | CANopen | Single axis; ±180°; 36V | 098G2500 |
| CANopen | Dual axis; ±85°; 36V | 098G2501 |
Ordering code – on request
| Electrical connections | |
| AMP Superseal 6P connector | A |
| Cable (specify cable length) | F |
| Axis type | |
| Dual axis (XY axis) | O |
| Single axis (Z axis) | V |
| Measuring range | |
| (Measuring range (indicate) ±10° ±15° ±20° ±30° ±45° ±60° ±85° | xxx |
| (single axis Z for analogue output-dual axis XY); 360° (±180°) for single Z axis only | |
| Measuring range (Not available) | |
| (Redundant option not available) | 0 |
| Supply voltage | |
| +5Vdc (only for A1 output) | L |
| +10…+36Vdc | H |
| (see output signal for right supply voltage) | |
| Output type | |
| 0.5 – 4.5 V DC output | A1 |
| (available with supply L = ratiometric output and with supply H = 0.5 – 4.5 V output) | |
| 0 – 10 V DC output (powered at 11 – 36 V DC) | A2 |
| 4 – 20 mA output (powered at 10 – 36 V DC) | A3 |
| CANopen output (powered at 10 – 36 V DC) | C1 |
| Cable | |
| Cable without connector (always “0” in case of DST X710 A MP Superseal) | 0 |
| Cable (100 mm) + M12, 5-pin male overprinted connector | 1 |
| Certificate | |
| No certificate attached | 0 |
| Linearity curve to be attached | L |
| Version | |
| Standard | 33 |
| Accessories | |
| No accessories | X |
| Magnetic pen (PKIT 312) | Y |
| 3 x spacers for redundant version (BUS027) | A |
| Cable length | |
| 100 mm | 1 |
| 200 mm | 2 |
| 500 mm | 5 |
| 1 m | 10 |
| 2 m | 20 |
| Other length on request | – |
