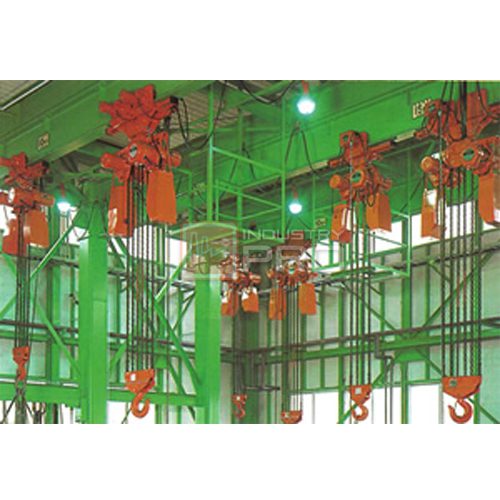

รอกโซ่ไฟฟ้า Electric Chain hoists NICHI High-Capacity Electric Chain Hoist MH5
High – Capacity Electric chain Hoist (3_phase 200V)
Specifications for High-Capacity Electric Chain Hoist MH5
| Item no. | Rated load (t) | Standard lift (m) | Hoisting speed | Motor output (kW) | Motor insulation class | Rated time (min) | ||||
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| (m/sec) | (m/min) | (m/sec) | (m/min) | |||||||
| MH5300 | 30 | 4 | 0.012 | 0.7 | 0.015 | 0.9 | 3.1×2 | 3.7×2 | B | 30 |
| MH5400 | 40 | 0.008 | 0.5 | 0.01 | 0.6 | |||||
| MH5500 | 50 | 0.005 | 0.3 | 0.007 | 0.4 | |||||
| MH5600 | 60 | Please consult us. | ||||||||
| Item no. | Rated load (t) | Load chain | Power cable length (m) | Push-button switch cord length S (m) | Min. headroom G (mm) | Net weight* (kg) | |
| Diameter | No. of falls | ||||||
| MH5300 | 30 | 11.2 | 12 | 5 | 4.6 | 1,650 | 800 |
| MH5400 | 40 | 16 | 5 | 2,000 | 1,300 | ||
| MH5500 | 50 | 24 | 5.5 | 2,400 | 1,700 | ||
| MH5600 | 60 | Please consult us. | |||||
Notes:
- Please contact us for specifications when using a high-capacity MH-5 in combination with an electric or a geared trolley.
- The motor requires a winding that matches the specified voltage and frequency.
