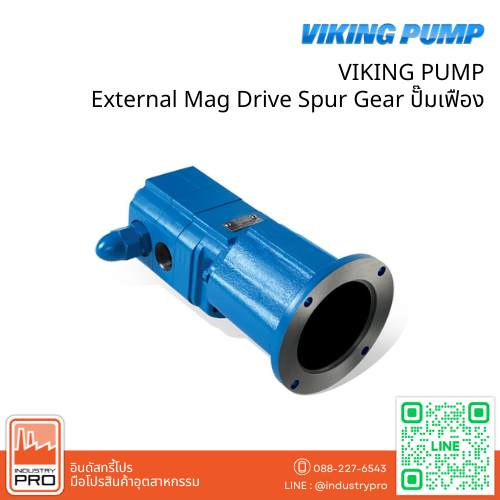

VIKING PUMP External Mag Drive Spur Gear ปั๊มเฟือง หรือเกียร์ปั๊ม
การใช้งาน
SPECIFICATIONS DATA
| Size | Standard Port | Nominal Capacity at Maximum Speed | Maximum Speed | Maximum Pressure* | ||
| Inches | m³/hr | GPM | RPM | BAR | PSI | |
| 417 | 0.375 | 0.01 | 0.06 | 1800 | 34 | 500 |
| 418 | 0.375 | 0.03 | 0.14 | 1800 | 34 | 500 |
| 425 | 0.375 | 0.04 | 0.18 | 1800 | 34 | 500 |
| 435 | 0.375 | 0.06 | 0.27 | 1800 | 34 | 500 |
| 450 | 0.375 | 0.08 | 0.36 | 1800 | 34 | 500 |
| 470 | 0.375 | 0.11 | 0.5 | 1800 | 34 | 500 |
| 518 | 0.5 | 0.16 | 0.7 | 1800 | 34 | 500 |
| 525 | 0.5 | 0.23 | 1 | 1800 | 34 | 500 |
| 535 | 0.5 | 0.32 | 1.4 | 1800 | 34 | 500 |
| 550 | 0.5 | 0.45 | 2 | 1800 | 34 | 500 |
| 570 | 0.5 | 0.64 | 2.8 | 1800 | 34 | 500 |
| 510 | 0.5 | 0.91 | 4 | 1800 | 34 | 500 |
| 514 | 0.75 | 1.3 | 5.6 | 1800 | 34 | 500 |
| 519 | 0.75 | 1.7 | 7.6 | 1800 | 14 | 200 |
| 528 | 0.75 | 2.5 | 11.2 | 1800 | 7 | 100 |
| 729 | 1 | 0.6 | 2.8 | 1800 | 34 | 500 |
| 741 | 1 | 0.91 | 4 | 1800 | 34 | 500 |
| 758 | 1 | 1.3 | 5.6 | 1800 | 34 | 500 |
| 782 | 1 | 1.8 | 8 | 1800 | 34 | 500 |
| 711 | 1 | 2.5 | 11.2 | 1800 | 34 | 500 |
| 716 | 1 | 3.6 | 16 | 1800 | 34 | 500 |
| 722 | 1.5 x 1.25 | 5 | 22 | 1800 | 34 | 500 |
| 732 | 1.5 x 1.25 | 7.3 | 32 | 1800 | 34 | 500 |
| 1009 | 1 | 3.66 | 16 | 1800 | 34 | 500 |
| 1013 | 1.5 | 5.7 | 25 | 1800 | 34 | 500 |
| 1026 | 2 | 11.34 | 50 | 1800 | 34 | 500 |
| 1420 | 2 | 15.9 | 70 | 1800 | 34 | 500 |
| 1436 | 3 | 28.38 | 125 | 1800 | 20 | 290 |
| 1456 | 4 | 43.19 | 190 | 1800 | 13 | 190 |
