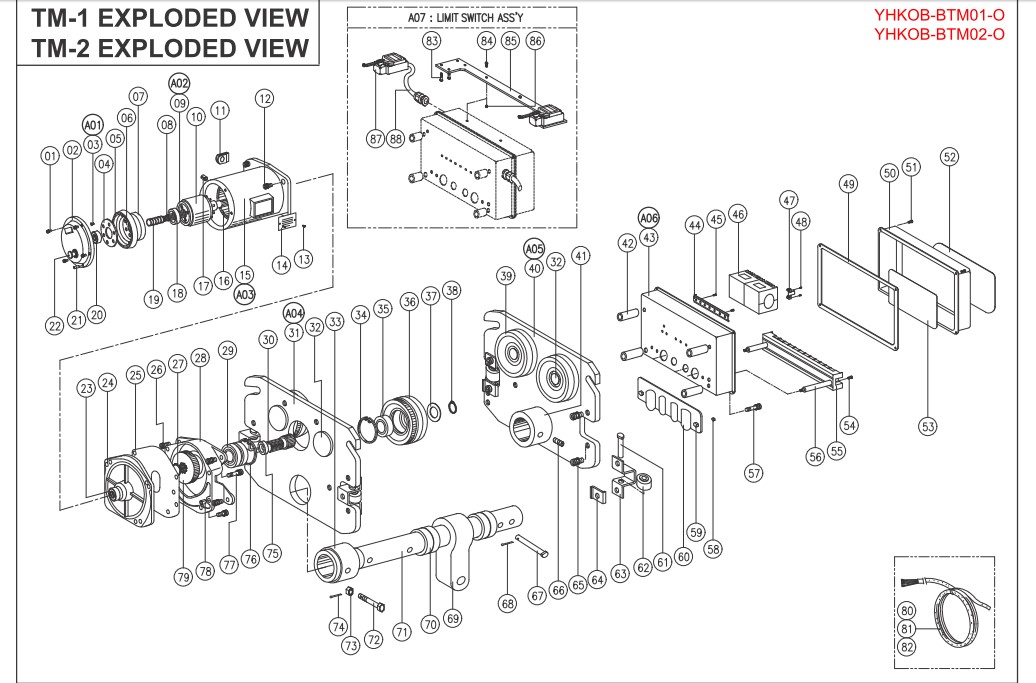

| ลำดับในภาพระเบิด | Part no. | ชื่อสินค้า | รายละเอียดสินค้า |
| 1 | VBM0600200PS | HEX WRENCH BOLT S/W | M6*25+SW |
| 2 | DMD11C0B0400 | BRAKE COVER | |
| A01 | DMD11C0B0600 | BRAKE DISC ASS’Y | |
| A02 | DPD11C0RA000 | ROTOR ASS’Y | |
| 11 | DMD11C0L0100 | LEAD PACKING | |
| 12 | VBM0800200PS | HEX WRENCH BOLT S/W | M8*20+SW |
| 14 | DMD11C0M0300 | MOTOR NAME PLATE | |
| A03 | DPD11C046100 | MOTOR CASE & STATOR | |
| 18 | DMD11C0B0900 | BUMPER RUBBER | |
| 19 | DMD11C0B0800 | BRAKE SPRING | |
| 20 | DQBB6202DD00 | BALL BEARING | 6202DD |
| 21 | VBM0600150PR | SPRING PIN | Φ6*15 |
| 22 | DMD11C0C0400 | COVER PLUG | |
| 23 | DQBB6204DD00 | BALL BEARING | 6204DD |
| 24 | DMD11C0F0100 | FLANGE | |
| 25 | DMD11C0P0100 | PACKING FOR FLANGE | |
| 26 | VBM1000300PW | HEX WRENCH BOLT S/W | M10*30+SW |
| 27 | DQOUS0002500 | SNAP RING | S25 |
| 28 | DMD11C0G0100 | GEAR CASE | |
| 29 | DQBB6205ZZ00 | BALL BEARING | 6205ZZ |
| 30 | DMD11C030100 | 3RD GEAR | |
| A04 | DMD11C0G0500 | GEAR SIDE PLATE ASS’Y | |
| 34 | DQINR0004000 | SNAP RING | S40 |
| 35 | DQBB6203ZZ00 | BALL BEARING | 6203ZZ |
| 36 | DMD11C0G0200 | GEAR ROLLER | |
| 37 | USJ11C0P0100 | PLAIN WASHER | |
| 38 | DQOUS0001700 | SNAP RING | S17 |
| 39 | DMD11C0P0300 | PLAIN ROLLER | |
| A05 | DME11C0P0700 | PLAIN SIDE PLATE ASS’Y | |
| 42 | DMD11C0S0600 | SUPPORT BAR | |
| A06 | DOE11C001N00 | ELECTRIC EQUIPMENT ASS’Y | |
| A06(43) | DME11C0C0400 | CONTROL BOX | |
| A06(44) | DME11C0C0100 | CHANNEL | |
| A06(45) | VBM0400080NA | MACHINE SCREW S/W P/W | M4*8 |
| A06(46) | DGDM1213A1B0 | MAGNETIC CONTACTOR SWITCH | DMC-12-1A1B |
| A06(47) | TERMINAL BLK STOPPER | ||
| A06(54) | DOZEBLK20150 | MACHINE SCREW S/W | M5*12 |
| A06(55) | TEMINAL BLK | M4*12 | |
| A06(56) | USD12C8H0100 | HEX STAY PIN | |
| 49 | DME11C0P0200 | PACKING CONTROL BOX | |
| 50 | DME11C0C0600 | CONTROL BOX COVER | |
| 51 | VBM0500100NS | MACHINE SCREW S/W | M5*12 |
| 52 | DME11C0N0100 | NAME PLATE | |
| 53 | VTE11C0S0100 | STICKER WIRING | |
| 57 | VBM0800500PW | HEX WRENCH BOLT P/W | M8*55 |
| 58 | HEX NUT | M5 | |
| 60 | DMA11C0C1400 | CORD HOLDER | |
| 61 | USA11C0G0100 | GUIDE ROLLER PIN | |
| 62 | DMD11C0G0700 | GUIDE ROLLER | |
| 63 | DMD11C0G0800 | GUIDE ROLLER BODY | |
| 64 | DMD11C0G0600 | GUIDE PLATE | |
| 65 | HEX WRENCH BOLT S/W | M10*20 | |
| 66 | VBM0800100P0 | SET SCREW | M8*10 |
| 67 | USD11C0S0300 | STOPPER PIN | |
| 68 | VBM0300300W0 | COTTER PIN | ∮3*32 |
| 69 | DMD11C0C0300 | CONNECTING ARM | |
| 70 | DMD11C0A0100 | ADJUSTING COLLAR | |
| 71 | SHAFT | ||
| 72 | USD11C0S0200 | STOPPER BOLT | |
| 73 | VBM1000000NH | HEX NUT | M10 |
| 74 | COTTER PIN | ∮3*32 | |
| 75 | DMD11C0C0200 | COLLAR FOR 3RD GEAR | |
| 76 | DQINR0005200 | SNAP RING | R52 |
| 77 | VBM0800450PW | HEX WRENCH BOLT | M8*45 |
| 78 | VBM0800200PR | SPRING PIN | Φ8*20 |
| 79 | DMD11C020100 | 2ND GEAR | |
| A07 | DMD11C0L0200 | LIMIT SWITCH ASS’Y | |
| A07(86) | DMD11C0L0300 | LIMIT SWITCH BOARD |
