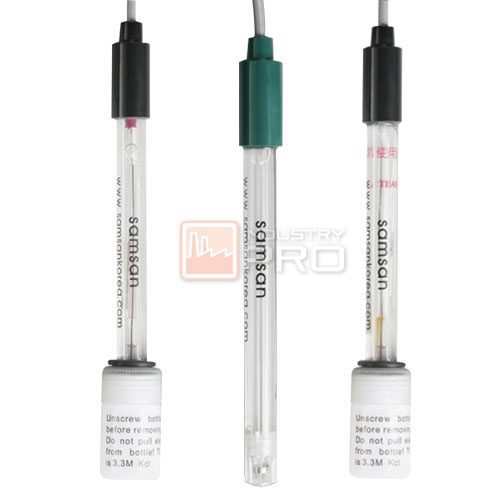

เซ็นเซอร์ตรวจวัดค่า ORP SAMSAN SOR Series
ORP Sensor SAMSAN SOR ใช้ในการตรวจสอบกระบวนการที่หลากหลาย การใช้งานทั่วไป ได้แก่ การฆ่าเชื้อโดยใช้คลอรีนโอโซนและโบรมีน ทุกสายพันธุ์เหล่านี้เป็นตัวออกซิไดเซอร์ที่เข้มข้น ดังนั้น ORP จึงถูกใช้เป็นตัวบ่งชี้กิจกรรมการฆ่าเชื้อ ORP ยังใช้ในกระบวนการแอพพลิเคชั่นเพื่อตรวจสอบการทำลายของโครเมตหรือไซยาไนด์เช่นเดียวกับในการผลิตสารฟอกขาวและเครื่องขัดผิวเปียก
SOR-300G
ITEM | ORP electrode |
MODEL | SAMSAN SOR-300G |
Type | Filling |
Measuring Range | ± 1500 mV |
Conductivity of liquid | over than 100 μs/cm |
Temperature | 0 – 60˚C |
Pressure | Using HOLDER filled with KCL It’s filed by atomospheric pressure |
Reference Electrode | Ag/AgCI |
Junction | sleeve |
Zero Potential | 0 mV ± 1 mV |
Materials | glass |
Dimensions | Ø12 X 155mm |
Cable Length | 5m (Standard) |
Connector | Y-Terminal type |
Connector | Y-Terminal type |
SOR-400G
ITEM | ORP electrode |
MODEL | SAMSAN SOR-400G |
Type | Non-Filling |
Measuring Range | ± 1500 mV |
Conductivity of liquid | over than 200 μs/cm |
Temperature | 0 – 90˚C |
Pressure | Less than max 1kg/cm² |
Reference Electrode | Ag/AgCI |
Junction | sleeve |
Zero Potential | 0 mV ± 1 mV |
Materials | glass |
Dimensions | Ø12 X 155mm |
Cable Length | 5m (Standard) |
Connector | Y-Terminal type |
Connector | Y-Terminal type |
SOR-400V
ITEM | ORP electrode |
MODEL | SAMSAN SOR-400V |
Type | Non-Filling |
Measuring Range | ± 1500 mV |
Conductivity of liquid | over than 200 μs/cm |
Temperature | 0 – 80˚C |
Pressure | Less than max 0.5kg/cm² |
Reference Electrode | Ag/AgCI |
Junction | Caramic |
Zero Potential | 0 mV ± 1 mV |
Materials | PC Housing |
Dimensions | Ø12 X 155mm |
Cable Length | 5m (Standard) |
Connector | Y-Terminal type |
Connector | Y-Terminal type |
