| Name |

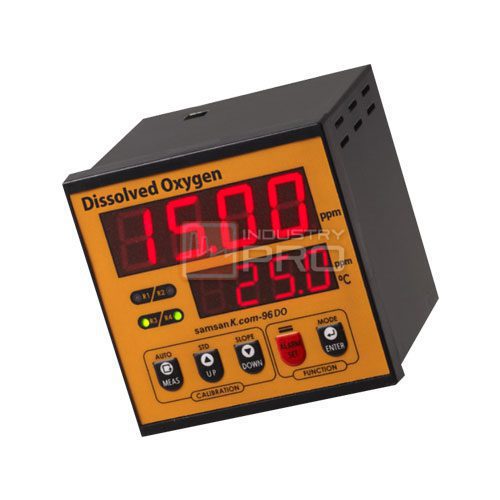

DO Indicating Controller(2Relays) |
DO Indicating Controller(4Relays) |
| Model |
samsan K.com-96DO-F2 |
samsan K.com-96DO-F4 |
| Display(FND) |
0 ~ 20.00 ppm |
| Measuring Type |
Membrane Galvanic type |
| Accuracy |
Within ±1.5% F.S (Under same temperature) |
| Repeatability |
Within 1% F.S (Under same temperature) |
| Range |
DO |
0 ~ 20.00 ppm (Resolution:0.01ppm) |
| Temperature |
0 ~ 100℃ |
| Using Temperature |
-5℃ ~ 45℃ |
| Using Humidity |
Less than 90%RH |
| Temperature Conpensation |
0 ~ 40℃ |
| Sensor Calibration |
Calibration with ZERO-water, SATURATION-water, Atmosphere Calibration, Manual Calibration |
| Reponse Time |
90%Response 60 sec.(Under same temperature) |
| Power |
AC85V ~ AC250V / 50/60Hz / Free Voltage |
| Out-Put |
Analog Output |
DC4-20mA / ISOLATION |
| AUTO HOLD…Sensor Cleaning Out-Put |
| Communication |
– |
RS-485 |
| Relay(Alarm) |
2-RELAY SPDT-Relay AC250V3A MAX. |
4-RELAY SPDT-Relay AC250V3A MAX. |
| Available with Cleaning Out-Put & Time Proportional Out-Put |
| Power Consumption |
Approx. 5VA |
| Case Mat’ls |
Case |
STEEL |
| Front |
ABS |
| Key Pad |
Membrane |
| Size |
96 X 96 X 110mm |
| Weight |
Approx. 0.5kg |
| Installation |
PANEL MOUNT TYPE |
