รอกโซ่ไฟฟ้า Electric Chain Hoists NICHI ECCP4

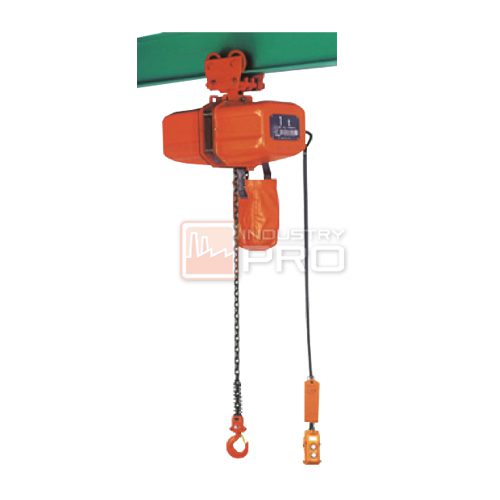

Plain Trolley Type Single-Phase Electric Chain Hoist (1-phase 100V)
- This single-phase electric chain hoist with a plain trolley can be moved upward and downward via a two-button switch.
- The rated load of 1 tw is applicable to a two-chain configuration.
- The standard lift is 3 m.
- The length of a standard power cable is 5 m. Please consult us for different cable lengths or for other power feeding systems.
Specifications for Plain Trolley Type Single-Phase Electric Chain Hoist ECCP4
| Item no. | Rated load | Standard lift (m) | Traversing rail width (mm) | Min. curve radius | Power cable length (m) | Push-button switch cord length S (m) | Min. headroom G (mm) | Hook mass (kg) | Net weight* (kg) |
| ECCP40030 | 300kg | 3 | 75 | 1 | 5 | 2.6 | 475 | 0.7 | 42 |
| ECCP40050 | 500kg | 100 | 510 | 42 | |||||
| ECCJP40100 | 1tw | 125 | 640 | 2.4 | 48 |
| Item no. | External dimensions (mm) | ||||||||||||
| A | B | D | E | F | H | I | K | L | M | P* | Q* | U | |
| ECCP40030 | 245 | 245 | 137 | 149 | 20 | 105 | 105 | 206 | 24-t2 | b-42 | 650 | 195 | 80+t2 |
| ECCP40050 | |||||||||||||
| ECCJP40100 | 167 | 118 | 25 | 695 | 225 | ||||||||
Notes:
- Figures marked with an asterisk (*) are based on the standard lift.
- Specifications are subject to change for improvements without notice.
- Please refer to the specifications for the ECC4 for items related to hoisting.
