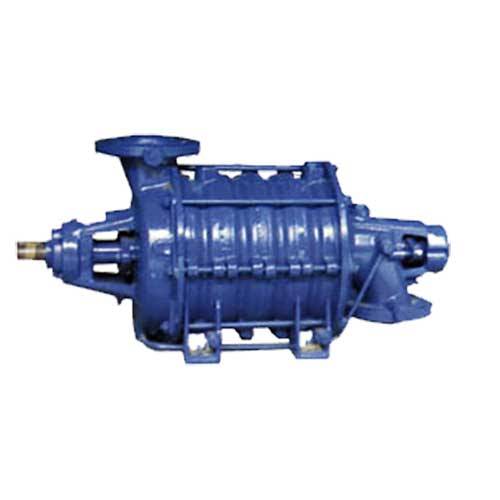

ปั๊มน้ำหลายใบพัด Intersigma L-V Series เป็นเครื่องสูบน้ำชนิดหอยโข่งแบบหลายใบพัด สำหรับน้ำสะอาดที่ไม่มีตะกอนต่างๆ เหมาะที่จะใช้กับงานสูบน้ำที่มีระยะทางและแรงดันค่อนข้างสูง สามารถรองรับอุณหภูมิของน้ำได้ถึง 80 องศาเซลเซียส มีขนาดท่อทางสูบและจ่ายให้เลือกตั้งแต่ 80-125 มิลลิเมตร และจำนวนใบพัดที่ใช้งานมีให้เลือกตั้งแต่ 3-8 ใบ
ปั๊มน้ำหลายใบพัด Intersigma L-V Series เหมาะสำหรับ
Model | Number ofstages |
Flow CapacityQ |
Delivery HeadH |
Power Input of pump Pi |
Speeds n |
Flanges suction |
discharge | Weight Range 1 m |
(l.s~1) | (m) | (kW) | (R.P.M) | DM/PN | DN/PN | (kg) | ||
INTERSIGMA L-VA4-D | *3 | 10 13.3 |
28 23 |
4.4 5.2 |
1450 | 80/10 | 80/10 | 83 |
3 | 10 13.3 |
42 35 |
6.6 7.8 |
104 | ||||
4 | 10 13.3 |
56 46 |
8.8 10.4 |
125 | ||||
5 | 10 13.3 |
70 58 |
11 13 |
146 | ||||
6 | 10 13.3 |
83 70 |
13.2 15.6 |
169 | ||||
7 | 10 13.3 |
97 81 |
15.4 18.2 |
188 | ||||
INTERSIGMA L-VN4-D | *3 | 11.7 14.2 16.5 |
28 26 23 |
5.1 5.7 6.1 |
1450 | 100/10 | 100/16 | 83 |
3 | 11.7 14.2 16.5 |
42 39 35 |
7.7 8.6 9.2 |
104 | ||||
4 | 11.7 14.2 16.5 |
56 52 46 |
10.2 11.4 12.2 |
125 | ||||
5 | 11.7 14.2 16.5 |
70 65 58 |
12.8 14.3 15.3 |
146 | ||||
6 | 11.7 14.2 16.5 |
84 78 69 |
15.3 17.1 18.3 |
167 | ||||
7 | 11.7 14.2 16.5 |
98 91 81 |
17.9 20 21.4 |
188 | ||||
8 | 11.7 14.2 16.5 |
108 100 90 |
20.4 22.6 23.8 |
209 | ||||
INTERSIGMA L-VN5-D-01 | 2 | 25 33.5 |
49 42 |
16 19.2 |
1450 | 125/10 | 125/10 | 190 |
3 | 25 33.5 |
73 63 |
24 28.8 |
230 | ||||
4 | 25 33.5 |
98 84 |
32 38.4 |
270 |
