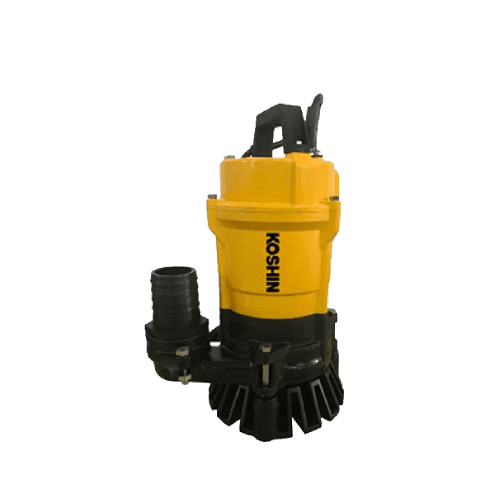

ปั๊มจุ่ม (Submersible Multi-purpose Pump) KOSHIN PKJR Series เป็นปั๊มน้ำแบบจุ่มสำหรับใช้ในงานสูบน้ำทั่วไป ตัวปั๊มถูกออกแบบมาให้เหมาะกับการพกพา มีน้ำหนักเบา แต่แข็งแรงทนทาน
คุณสมบัติ KOSHIN PKJR Series
ตัวแกนเพลามีรอบการหมุนที่เร็วทำให้เหมาะกับการสูบน้ำที่มีทรายหรือโคลนปะปนอยู่ได้ พร้อมทั้งติดตั้งตัวซีลกันรั่วถึงสองชั้น (Double Mechanical Seal) เพื่อป้องกันไม่ให้ตัวเครื่องอยู่ในสภาวะอุณหภูมิที่ร้อนจัด
การใช้งาน
KOSHIN PKJR Series เป็นปั๊มจุ่มที่ใช้งานร่วมกับสวิตช์ลูกลอยเพื่อทำการเปิดหรือปิดได้อย่างอัตโนมัติ เหมาะสำหรับใช้ในงานก่อสร้าง และสูบน้ำที่มีตะกอน เช่น ทรายและโคลน
MODEL | Output (kW.) | Output (HP) | Discharge (inch) | Voltage | Max | Cable (M) | Weight (kg.) | ||
Head (M) | Capacity L/min | Solid (mm.) | |||||||
PKJR-400 | 0.4 | 0.5 | 2 |
1 Phase 100V-240V
|
12/12 | 230/230 | 10 | 10 | 12 |
PKJR-750 | 0.75 | 1 | 2 or 3 | 18/18 | 350/350 | 10 | 10 |
16
|
MODEL |
Discharge |
PUMP Section |
||
d |
A |
D |
H |
|
PKJR-400 |
2”(50) |
249 |
180 |
343 |
PKJR-750 |
2”(50) or 3”(80) |
279 |
180 |
368 |
